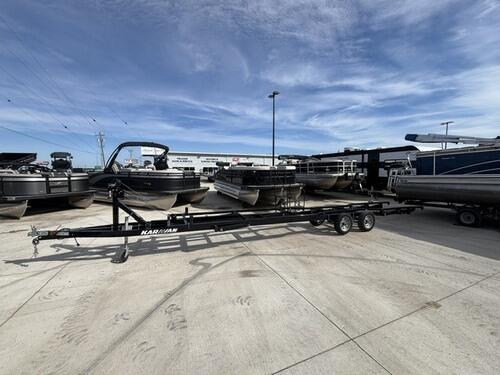

The 2026 Karavan KPSHD-222-43-2990 is a tandem axle scissor lift pontoon trailer. Designed primarily for easily launching pontoons in shallow waters and transporting them between shore and storage, it uses a convenient cantilever center-lift design.?

The model breakdown indicates it is built for pontoons up to 22 feet in length, features a 43-inch frame width, and carries a 2,990 lb standard carrying capacity class designation (though structural GVWR yields a payload allowance up to 3,390 lbs depending on regional braking configurations).?

Key Specifications

The key dimensions and capacities include:

• Maximum Boat Length: 22' 6"

• Overall Trailer Length: 28' 6" (342 inches)

• Overall Width: 46 inches (43 inches interior frame width)

• Trailer Weight: 790 lbs

• Gross Vehicle Weight Rating (GVWR): 4,180 lbs

• Maximum Weight Capacity: Up to 3,390 lbs

• Tire Size: 5.30 x 12C on steel wheels

• Coupler Size: 2-inch straight-tongue ball hitch

• Has been used a couple of times around the Sales Lot
