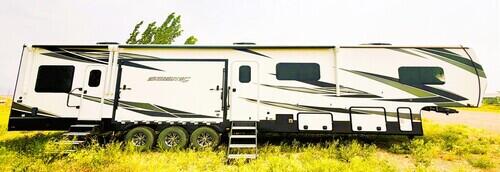

2021 Jayco Seismic 4113 Toy Hauler

DIMENSIONS

Height 8' 3"

Height (interior) 6' 4"

Length 45' 7"

Width 8' 6"

Garage 126

WEIGHTS AND CAPACITIES

Dry Weight 15,995 lbs

GVWR 20,695 lbs

Payload Capacity 4,700 lbs

Sleep Capacity 9

Water Capacity Black 87 gal

Water Capacity Fresh 102 gal

Water Capacity Grey 87 gal

EXTERIOR FEATURES

102 in. wide-body structural steel I-Beam construction

2 Foldout decks with railings

2 Slideouts

3 electric awnings with LED lights

5,500W Onan gas generator (CARB-certified)

50-amp service and A/C prep

Battery disconnect

Black tank flush, winterization, and sanitation

Custom machined aluminum rims

Detachable shore power cord

Dexter axles with Nev-R-Adjust brakes, E-Z Lube hubs, and 4000 lb. leaf springs

Dual 30 gal. fuel station tank with timer (1 dedicated tank for generator)

Dual 30 lb. propane bottles with auto regulator

Easy lift ramp door, 2,500 lb. capacity, 93-3/8 in. wide opening with anti-slip, non-skid flooring

Equalizer Systems Hydraulic 6-point auto-leveling system with oversized foot pads

Exterior marine-grade speakers

Extreme weather package with fully enclosed and heated underbelly (ducted)

Folding roof ladder

Frameless dark tinted safety-glass windows

Hydraulic Disc Brake Package

JaySMART (Safety Markers And Reverse Travel) LED lighting

JBL home entertainment system

Keyed-Alike lock system

LED exterior lighting package

LP quick-connect

Magnum Truss Roof System with one piece, seamless DiFlex II material

MORryde CRE-3000 rubberized suspension

MORryde pin box

MORryde StepAbove entrance steps (main entrance)

Outside pass-through storage with 75 lb., full-extension, steel ball-bearing drawer guides

Oversized multi-battery compartment

Quick-connect outside shower

Rooftop and ground solar prep by Go Power!

Stronghold VBL aluminum framed and vacuum bond laminated gelcoated fiberglass walls

Tire Pressure Monitoring System (TPMS)

Under-mounted spare tire

Winegard Gateway 4G LTE + Wifi Extender

Wireless backup/rear and side view observation camera kit

INTERIOR FEATURES

2 in. block-foam insulated garage floor

2 Bathrooms

AC/heat pump unit in living room

2 AC units (garage, bedroom)

4 Televisions (garage, living room, bedroom, outside side deck)

40,000 BTU output furnace

5/8 in. tongue-and-groove joined plywood main floor decking

Carbon monoxide and LP detector

Central vacuum system

Convection microwave

Day/night roller shades in living room

Double layer fiberglass batt insulation in ceiling and floor

Drinking Water System

Dual USB charging ports (kitchen and bedroom)

Fireplace with 5,000 BTU electric space heater

Garage D-rings mounted to steel frame

JAYCOMMAND "Smart RV" system powered by BMPRO

JBL home entertainment system

PEX plumbing

Porcelain foot flush toilet

Quick recovery gas/electric DSI water heater (20GPH)

Residential "walk-in" shower with seat

Residential 18 cu. ft. Norcold Polar Max 2-way refrigerator

Residential Insignia stove (3.73 cu. ft.) with 12K BTU high output burner

Residential queen (60 in. x 80 in.) bed with under-bed storage

Solid hardwood slide fascia and cabinet doors

Stainless steel kitchen sink

SuperSofa with heat, massage, recliners, cup holders, and LED lighting

Tuff-ply, rubberized garage floor liner

Washer/dryer prep

Water heater bypass

Wet bolt fasteners and bronze bushings

Wireless remote control system (includes Bluetooth wireless interior controls)
