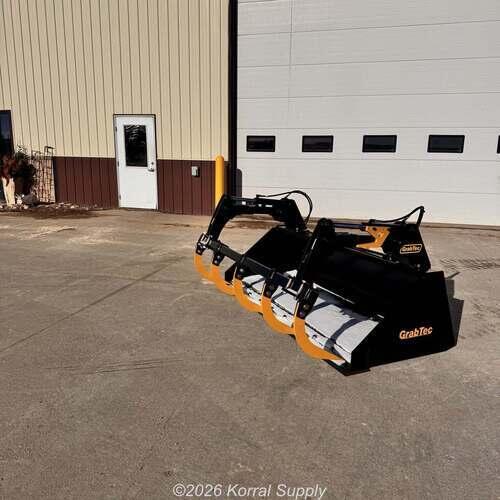

GrabTec 84" Grapple Bucket Series II

The Series II grapple has been specially designed to fit large frame John Deere, Bobcat, Kubota and CAT skid loaders. Also, the Torque tube has been moved forward to account for the skid loader arms and hydraulics. Allowing clearence for when the grapple is rolled fully back.

Bolt on cutting edge

Bucket Specifications

Bucket Inner Width-84"

Capacity - Heaped(yd3)-1.2

Weight w/out Bolt-on Edge (lbs)-1364

Bucket Height (in)-24

Bucket Depth (in)-37.5

Max. opening, ground to teeth (in)-74.5

Number of Teeth available-5

Diameter of main grapple pivot pins (in)-1.25

Maximum Primary Clamping Force at tips of teeth with 3250psi (lbs)-2,500

Maximum Secondary Clamping Force at tips of teeth with 3250psi (lbs)-2,600

Grapple opening time with 15gpm-1.6 sec. (flow to cylinders is not restricted)

Maximum recommended operating pressure (psi)-3,500
