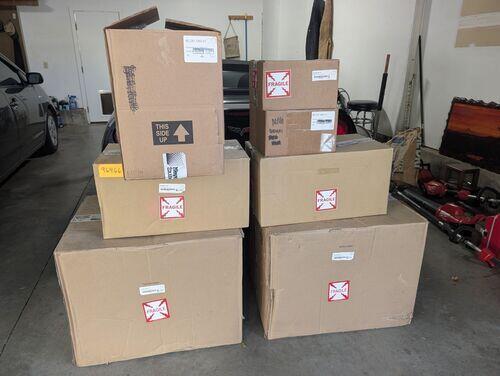

Myer Sound Professional sound system lot. All is new as shown however a few of the boxes have been opened for pictures. System is new and has never been used or setup. All sales final, please ask any and all questions before bidding, offers or purchase.

SEE MY FEEDBACK AND BUY WITH CONFIDENCE! 25 YEARS ON EBAY AND NEVER A NEGATIVE FEEDBACK! LETS MAKE A DEAL MAKE ME AN OFFER YOU JUST MIGHT BE SURPRISED!

This listing includes the following...

Quantity 2 - One has been opened one is sealed.

Meyer Sound Amie-Sub 15 inch Active Subwoofer

1100W Powered Studio Subwoofer with 15" Low-frequency Driver

MPN 09.251.001.01

Quantity 2 - One has been opened one is sealed.

Meyer Sound ULTRA-X22XP-STD

2x5" 2-Way Active 80x50 Coverage Speaker, STD, Phoenix

MPN 09.306.101.01

Quantity 1 - Sealed

Meyer Sound MPS-482HP Power Supply

2-channel External Power Supply for IntelligentDC-equipped Loudspeakers

MPN 09.285.001.01

Quantity 2 (in same box) - Opened box

Meyer Sound MYA-X20

Yoke mount for X20 speakers

MPN 40.297.450.01

Quantity 2 (in same box) - Opened box

Meyer Sound MUB-AMIE-SUB U-Bracket Kit

MPN 40.251.050.01

AGAIN SERIOUS INQUIRIES ONLY PLEASE AND PLEASE ASK ANY AND ALL QUESTIONS BEFORE BIDDING OR PURCHASING. I DO MY BEST TO GET RIGHT BACK TO ANYONE. LOCAL PICKUP PREFERRED AS INSURED SHIPPING IS VERY EXPENSIVE AS SHOWN!

THANKS FOR LOOKING, DETAILED DESCRIPTIONS OF EACH BELOW.

Meyer Sound Amie-Sub 15 inch Active Subwoofer

1100W Powered Studio Subwoofer with 15" Low-frequency Driver

MPN 09.251.001.01

The Meyer Sound Amie-Sub delivers everything top-tier studio pros demand, including clean, punchy transients and unwavering phase coherence. This powered studio subwoofer offers exceptionally linear sound and ruler-flat frequency response, all the way down to 25Hz. Amie-Sub employs a proprietary Class D design with state-of-the-art processing that tackles crossover, driver protection, and frequency and phase correction duties. A top-of-the-line transducer and an optimized cabinet port yield unprecedented efficiency, while keeping port-generated distortion at bay. Optional modules integrate Amie-Sub with Amie studio monitors for bass-managed stereo and surround systems up to 7.1. You can also use Amie-Sub with HMS-5, HMS-10, HMS-12, and HMS-15 surround speakers and with ULTRA systems. Visually speaking, Amie-Sub boasts a premium multi-ply birch cabinet with a head-turning textured finish, so they will look great in any room.

Built around a proprietary Class D design

Amie-Sub is powered by a proprietary Class D amplifier with sophisticated built-in signal processing, including a crossover, driver protection, and frequency and phase correction. This studio subwoofer vaunts generous headroom, low distortion, and negligible self-noise. At Sweetwater, we've also found it to offer a uniform tonal balance even at high sound pressure levels. No matter what material you're listening to, Amie-Sub will reproduce its low-frequency content with uncompromising precision.

Top-of-the-line transducer ensures top-of-the-line sound

Meyer Sound loaded Amie-Sub with a top-drawer transducer to ensure the best sound possible. Its 15-inch, long-excursion cone woofer exhibits incredible linear frequency and amplitude response. Beyond that, this sub's optimized cabinet port enhances its efficiency and ensures negligible port-generated distortion. Amie-Sub's slanted connector panel facilitates flush mounting against a wall, which reduces its installation depth to 19 inches connectors included.

Meyer Sound Amie-Sub Features:

Proprietary Class D design vaunts generous headroom, low distortion, and negligible self-noise

Linear sound and a ruler-flat frequency response even at high sound pressure levels

Sophisticated DSP provides a crossover, driver protection, and frequency and phase correction

15-inch, long-excursion cone woofer exhibits incredible linear frequency and amplitude response

Optimized cabinet port enhances its efficiency and ensures negligible port-generated distortion

Slanted connector panel facilitates flush mounting against a wall

Optional modules allow seamless integration with Amie systems up to 7.1

Also integrates with HMS-5, HMS-10, HMS-12, and HMS-15 surround speakers and ULTRA systems

Premium multi-ply birch cabinet with a head-turning textured finish

Tech Specs

Powered: Yes

Speaker Size: 15"

Driver Type: Cone

Total Power : 1100W Peak

Frequency Range: 22Hz-160Hz

Maximum Peak SPL: 124.5 dB SPL

Input Types: 1 x XLR

Output Types: 1 x XLR

Enclosure Type: Front Ported

Enclosure Material: Multi-ply Birch with Black Textured finish

Height: 17.5"

Width: 24"

Depth: 19"

Weight: 74 lbs.

Manufacturer Part Number: 09.251.001.01

Meyer Sound ULTRA-X22XP-STD

2x5" 2-Way Active 80x50 Coverage Speaker, STD, Phoenix

MPN 09.306.101.01

The Meyer Sound ULTRA-X20 packs cutting-edge ULTRA-X40 point source technology into a compact, lightweight design, making it a powerhouse for installations and mobile applications where space is at a premium. Whether serving as a main system in an intimate venue or as fills and surrounds in a larger setup, the ULTRA-X20 models deliver high output, low distortion, and a consistent polar response for incredible clarity and impact. Measuring just 7.5 inches wide, 19.04 inches high, and 8.6 inches deep, it offers surprising power with dual 5-inch cone drivers and a 2-inch compression driver arranged in a concentric configuration for enhanced pattern control.

With an 860-watt peak Class D amplifier and sophisticated DSP, the ULTRA-X20 provides electronic crossover, phase and frequency correction, and driver protection for rock-solid reliability and smooth, natural sound. The ULTRA-X22 configuration features a controlled 80 x 50 horn coverage, offering precise directivity for more focused applications. Exceptional impulse response and phase-corrected electronics ensure outstanding clarity, making the ULTRA-X20 an ideal choice for high-performance audio in a deceptively small package.

Meyer Sound Features:

An aluminum enclosure, compact, sleek, and lightweight, encapsulates remarkable fidelity and unexpected power capacity.

Exceptionally flat amplitude and phase response guarantee accurate tonality and exact imaging.

A wide coverage pattern spans extensive listening areas seamlessly.

The rotatable horn offers installation versatility, adapting to various setups.

Integrated stand mounts and QuickFly mounting options simplify rigging processes for effortless installation.

Meyer Sound Specifications:

Operating Frequency Range: 60 Hz 18 kHz

Frequency Response: 65 Hz 17.5 kHz 4 dB

Phase Response: 95 Hz 18 kHz 45

Linear Peak SPL: 128.5 dB with 20 dB crest factor (M-noise), 123.5 dB (Pink Noise), 125 dB (B-noise)

Rotatable Horn: 80 x 50

Crossover: 830 Hz

Low Frequency: Two 5-inch cone drivers; 6 ? nominal impedance

High Frequency: One 2-inch diaphragm compression driver connected to a rotatable horn; 8 ? nominal impedance

Type: Differential, electronically balanced

Maximum Common Mode Range: 15 V DC, clamped to earth for voltage transient protection

Connectors: Phoenix 5-pin male

Input Impedance: 10 k differential between pins 2 and 3

Nominal Input Sensitivity: 0.0 dBV (1.0 V rms) continuous

Type: Three-channel, Class-D

Total Output Power: 860 W peak

THD, IM, TIM: < 0.02%

Cooling: Convection

Connectors: Phoenix 5-pin male provides power and audio connection

Automatic Voltage Selection: 90265 V AC, 5060 Hz

Safety Rated Voltage Range: 100240 V AC, 5060 Hz

Idle Current: 0.15 A rms (115 V AC); 0.13 A rms (230 V AC); 0.16 A rms (100 V AC)

Maximum Long-Term Continuous Current (>10 sec): 0.9 A rms (115 V AC); 0.5 A rms (230 V AC); 1.1 A rms (100 V AC)

Burst Current (

Maximum Instantaneous Peak Current: 3.5 A peak (115 V AC); 1.8 A peak (230 V AC); 4.1 A peak (100 V AC)

Inrush Current: < 20 A peak

Dimensions: W: 7.44 in (189 mm) x H: 19.04 in (484 mm) x D: 8.66 in (220 mm)

Weight: 27 lb (12.3 kg)

Enclosure: Aluminum with slightly textured black finish

Integrated Points: Two M8 threaded points on each end; four M6 threaded holes on the rear

Protective Grille: Powder-coated, round-perforated steel

Product Overview

The Meyer Sound ULTRA-X22XP W/P is a weather-protected, self-powered point source loudspeaker with a Phoenix connector for covered-outdoor and high-humidity commercial AV installation. It delivers full-range coverage in exposed venues where standard indoor cabinets are not suitable, without a dedicated amplifier rack.

Product Description

This W/P variant targets integrators specifying full-range loudspeakers for outdoor amphitheaters, covered courtyards, and exposed houses of worship using terminated install wiring. Built-in amplification removes amplifier channels from the rack, while the weather-protected construction addresses moisture and temperature exposure. The Phoenix connector supports clean permanent-install cabling, and the cabinet ties into the Meyer Sound rigging ecosystem for flown, stacked, or surface mounting in exposed locations.

Key Features

Weather-Protected Construction Built for covered-outdoor and high-humidity environments.

Self-Powered Design The XP architecture removes a dedicated amplifier channel from the rack.

Phoenix Connector Terminated wiring supports clean permanent-install cabling.

Point Source Design A single coherent source simplifies aiming and coverage prediction.

Rigging Ecosystem Compatibility Works with Meyer Sound rigging hardware for flown, stacked, or surface mounting in exposed locations.

Typical Applications

Auditorium Even coverage for speech and program material across tiered seating.

House of Worship Vocal clarity and music reproduction in acoustically demanding rooms.

Commercial Meeting Space High-intelligibility reinforcement for large rooms and divisible spaces.

Multi-Purpose Room Flexible output for spaces that alternate between speech and music.

Broadcast Studio Reference-grade reproduction for monitoring and playback.

Frequently Asked Questions

Is the ULTRA-X22XP compatible with my existing signal chain?

It is a self-powered loudspeaker that accepts a line-level input, so it integrates downstream of most commercial AV matrix switchers and DSP processors without an external amplifier.

What is involved in installing the ULTRA-X22XP?

It mounts through the Meyer Sound rigging and mounting ecosystem for flown, stacked, or surface configurations and is built for covered-outdoor and high-humidity environments in this weather-protected variant. Confirm rigging hardware against your specific mounting plan.

How does it fit into a larger AV system?

As a self-powered box it works as a standalone source or alongside matched Meyer Sound subwoofers for full-range coverage.

Meyer Sound MPS-482HP Power Supply

2-channel External Power Supply for IntelligentDC-equipped Loudspeakers

MPN 09.285.001.01

Meyer Sound MPS-482HP Power Supply

2-channel External Power Supply for IntelligentDC-equipped Loudspeakers

Rock-solid 2-channel External Power Supply

The Meyer Sound MPS-482HP delivers power and balanced audio to up to two loudspeakers that require an external DC power supply. This power supply is compatible with a range of Meyer Sound speakers with IntelligentDC technology. It's tailor-made for small, two-channel systems, or it can be used to supplement an MPS-488HP power supply for larger systems. The MPS-482HP's channel outputs are available as either Phoenix 5-pin male or EN3 5-pin female. At Sweetwater, we appreciate this power supply's front-panel LEDs, which provide at-a-glance visual feedback on voltage and load current levels. Finally, the MPS-482HP also provides remote monitoring via macOS or Windows.

Meyer Sound MPS-482HP Power Supply Features:

Delivers power and balanced audio to up to 2 loudspeakers

Compatible with a wide range of IntelligentDC-equipped speakers

Great for small systems or as a supplement to an MPS-488HP for larger systems

Channel outputs are available as either Phoenix 5-pin male or EN3 5-pin female

Front-panel LEDs provide at-a-glance visual feedback on voltage and load current levels

Provides remote monitoring via macOS or Windows

Meyer Sound MYA-X20

Yoke mount for X20 speakers

MPN 40.297.450.01

Meyer Sound MYA-X20

Yoke mount for X20 speakers

Safely and securely mount your Ultra-X20 point source loudspeaker to walls, ceilings, or other flat surfaces with the MYA-X20 yoke mount. The mount comes in a powder-coated black finish with side-twist adjustable handles for setting the optimal angle in any space.

MFR #: 40.297.450.01

Meyer Sound MUB-AMIE-SUB U-Bracket Kit - 40.251.050.01

The MUB-AMIE-SUB U-bracket secures an Amie-Sub cabinet for ceiling mounting using the side mounting points provided on the subwoofer. This allows the subwoofer to be positioned overhead where floor space is limited or where the system design calls for elevated low-frequency placement.

Key Features

Ceiling Mounting Enables an Amie-Sub cabinet to be mounted from a ceiling.

Side Mounting Interface Uses the side mounting points on the Amie-Sub cabinet, threaded 3/8-inch-16.

Placement Flexibility Allows elevated subwoofer placement where floor space is limited.

Amie-Sub Compatibility Designed specifically for the Amie-Sub compact subwoofer.

Technical Specifications

Model MUB-AMIE-SUB U-Bracket Kit

SKU 40.251.050.01

Compatibility Amie-Sub compact subwoofer

Mounting Interface Side nut-plates with 3/8-inch-16 threads

Mounting Surface Ceiling

Specifications sourced from Meyer Sound.
